We are Team Tech-Green from PVG's COET, Pune.We a team of young 5 aspired to be engineers working for the betterment in the field of ecofriendly air conditioning.
As we all know there are serious environmental effects such as global warming and ozone layer depletion due to emissions of harmful gases from conventional air conditioning systems.To reduce these effects we are developing a system which will give same refregeration effect as that conventional without any refrigerant.
In order to improve upon this perfIormance we are developing a solar powered refregeration and dehumidification system by using desiccant wheel as main componet of system. we need support and backing to fund our manufacturing and import the necessary parts needed to fabricateour ecofriendly air conditioner. Hence we would be privileged to get your valuable support in this journey of our's towards green airconditioning.

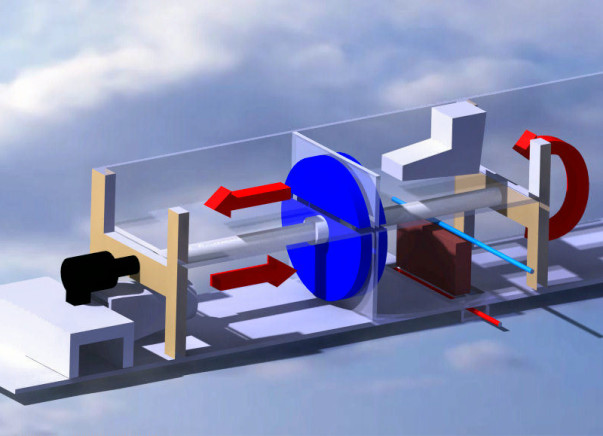

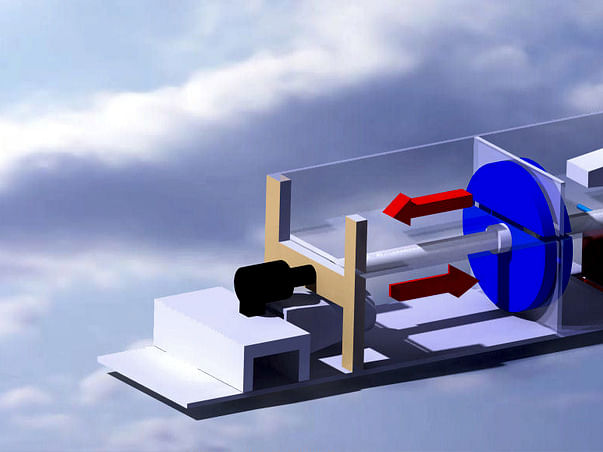

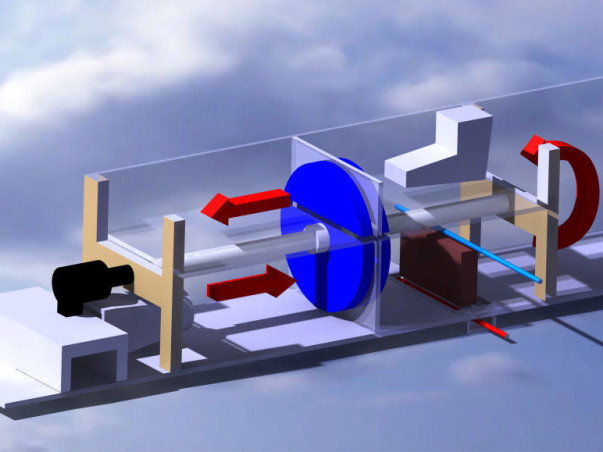

The design of the system is as follows.
As we all know there are serious environmental effects such as global warming and ozone layer depletion due to emissions of harmful gases from conventional air conditioning systems.To reduce these effects we are developing a system which will give same refregeration effect as that conventional without any refrigerant.In order to improve upon this perfIormance we are developing a solar powered refregeration and dehumidification system by using desiccant wheel as main componet of system. we need support and backing to fund our manufacturing and import the necessary parts needed to fabricateour ecofriendly air conditioner. Hence we would be privileged to get your valuable support in this journey of our's towards green airconditioning.The design of the system is as follows.
All the donated amount will be used for manufacturing of system and procurement of required parts.
As we are college students we are unable to collect such a huge amount.so we request you to support our ambitious and most innovative idea of green air-conditioning. Even the smallest help from your side is much appreciated. The estimated costing given below.
ESTIMATED COSTING
1.Desiccant Wheel | 60750 |
2.Coil | 1800 |
3.Thermocol | 50 |
4.Blower | 2295 |
5.Lugs | 10 |
6.Electronic Equipment | 5330 |
7.Pulley | 100 |
8.Shaft | 420 |
9.Polycarbonate Sheet | 4380 |
10.Nut, Bolt , Washer | 644 |
11.Screw | 90 |
12.Plywood | 1000 |
13.Wire | 10 |
14.Pin | 15 |
15.Lock Pin | 37 |
16.Plug | 20 |
17.M- seal | 35 |
18.Pipe and pipe fittings | 70 |
19.Tray | 110 |
20. Motor | 10000 |
21. Pulleys | 75 |
22. Belt | 200 |
23. Coupling | 380 |
24. Solar panal | 3500 |
25. Solar Heater System | 5135 |
Total : 96,466 | |
Measuring Instrument | |
1. Hygrometer | 3640 |
2. Thermo-Couple Temperature Sensor | 2570 |
Total : 6,210 | |
Others | 1200 |
Grand Total= 96466+6210+1200 = Rs. 103,876
- Total Cost= 103,876/-
