They Built Waterless Urinals For Schools Using Everyday Objects

The journey of the Waterless Urinals began just as most Reap Benefit stories do, and that is with the question, Why? Why were students urinating outside the toilet rather than in the toilet? Why did the toilets smell so much? What was responsible for the smell? Questions were plenty and soon we began investigating into the matter. Through this endeavor, we wanted to not only eradicate or reduce the foul smell of urine but to also bring about instinctive behavioral changes in the habits of people about sanitation in particular.

The first step to the challenge was to discover what caused the smell and how to combat it. A few lessons spent brushing up on science revealed a rather simple explanation for the cause of smell in toilets. Urine contains ammonia, and after flushing, uric acid is released, and it is the mixture of this uric acid with air which is responsible for that stench lingering in the toilet long after one has finished his/her business. The solution to minimize and eradicate smell is simple, all one has to do is flush properly and make sure the water flushes out every trace of urine. However, this solution is not the easiest for a country like ours, where water shortage is a daily nightmare for many. Hence, an alternative solution had to be found to cut off the smell which required minimal water.
At Reap Benefit, we work on core principles of low cost and simple solutions, our products are meant to be obtainable by everyone, using the most basic everyday materials and turning them into innovations serving other purposes. We initially introduced plants into the urinals, experimenting to see if the scent of the plants could overpower the stench of urine, this however proved unsuccessful for a long term. Also, it was observed that most male toilets in Government schools had no urinals or pans, to begin with, and students were not able to understand the difference between peeing on the side of a road or in a proper urinal, seeing as essentially for them both were just plain flat ground. We understood then that urinals would also have to be designed to ensure a behavioral change and to clean up our streets better.

The second experiment we tried involved a 20-litre water can and engine oil, materials what were cheap and accessible to everyone. The water can was upturned, and a significant portion of the top half was cut off, the mouth of the can was then fixed to pipes which were connected to the sewage line. Engine oil was then poured down the drain, and this was intended to block urine and air from mixing. Oil was observed to be a good solvent and deterrent and fulfilled its purpose of reducing the smell, but although it was successful in combatting the smell, it was not seen to be a viable long-term solution for numerous reasons. Firstly, it required a lot of maintenance with oil having to be poured every second day or so, and this just did not seem feasible; the minor maintenance required, the better. Secondly, it could cause a lot of clogging as remnants of it remained still, and it could potentially cause severe sewage problems. With potential setbacks such as these, a better model had to be developed.

It was back to the drawing board for the team, and with another of our principles in mind, ‘Fail fast and learn faster’, we persevered and worked on designing an innovation which met all the requirements. It was understood that to combat the smell, we needed to block the passage of air into the pipes, and after experimenting with a few objects, it was something as simple as a table tennis ball which appeared to be the best option. The table tennis ball was placed at the mouth of the PVC pipe, and this ensured a slower trickle of water down the drain and blocked air passageways. After many tries and experimentation, the tennis ball revealed itself to be the best option. However, before introducing the innovation to schools and the public, a change in design was also a requirement, seeing as the earlier version was kicked around as most urinals were placed outdoors.

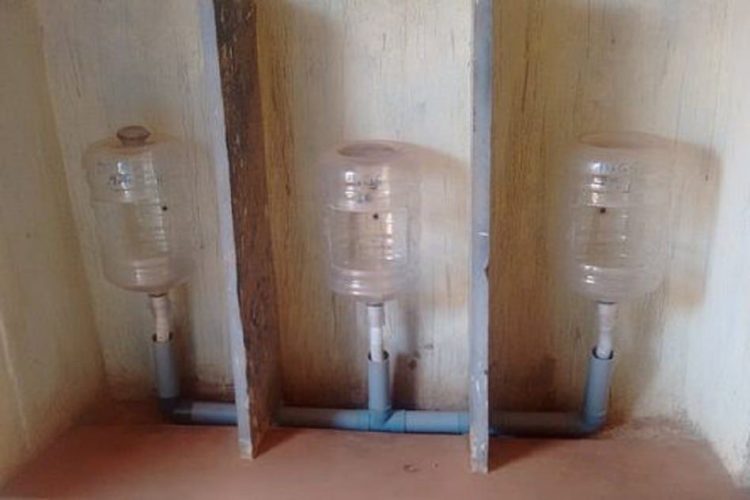

Using the Bisleri can still, we instead cut off a rectangle on one side of the upturned can, rather than the top half and mounted it on the wall. The new design was implemented in a few places, and after observing it for some time, it was declared a success! In brief, it is an innovation which is straightforward and inexpensive, required less maintenance, and was not reliant on water to ensure it remains clean and sanitary.
It has been four years since the first implementation of our version of a waterless urinal, and while it has been challenging in many ways, it has also been a huge success. The urinals have been installed in several schools all around Karnataka, including Bengaluru and Hubli, and have drastically improved the sanitation and hygiene.

The foul smell of urine has recorded to have been reduced, and even more importantly, it was observed that behavioral changes began to be instilled in students, with them understanding the importance and necessity of using the right facilities, instead of just urinating anywhere. While these successes have been recorded on a large scale, it has not been without obstacles. Approaching schools and convincing them of the purpose and need of such an innovation, was one of the bigger challenges we faced, as well as the tennis balls being stolen, and nails rusting. And while the urinals serve their purpose, they, however, are not aesthetically pleasing, which brings us to the next step to improve the existing model.

The journey of the waterless urinal has been quite an experience, with most people finding it hard to digest. Nevertheless, chances were taken, and the innovation has a success rate of 60%, with a majority of the schools happy and pleased with how situations have improved. The year 2016 also saw the implementation of waterless urinals in a private school to already existing urinals. The table tennis balls were added here, and the intention was to eradicate smell and moreover to cut down the usage of water. While the innovation began with the intention of improving sanitation, it is now also an important product for cutting down the use of water.

The Waterless Urinal has survived the test of time and weather conditions and has proved to be a durable product which delivers on its promises. The design has undergone several transformations over the years. While it requires a makeover, that does not take away the success so far. And while hurdles may continue to cross our path, with this innovation we are confident enough about it, and the beneficial aspects it serves to ensure its further and future success.

Update:
The material used was changed based on user feedback gathered from the field. Tin is more robust than a plastic can, and this version of the urinal is easier to build.

This story was first published on ReapBenefit.
